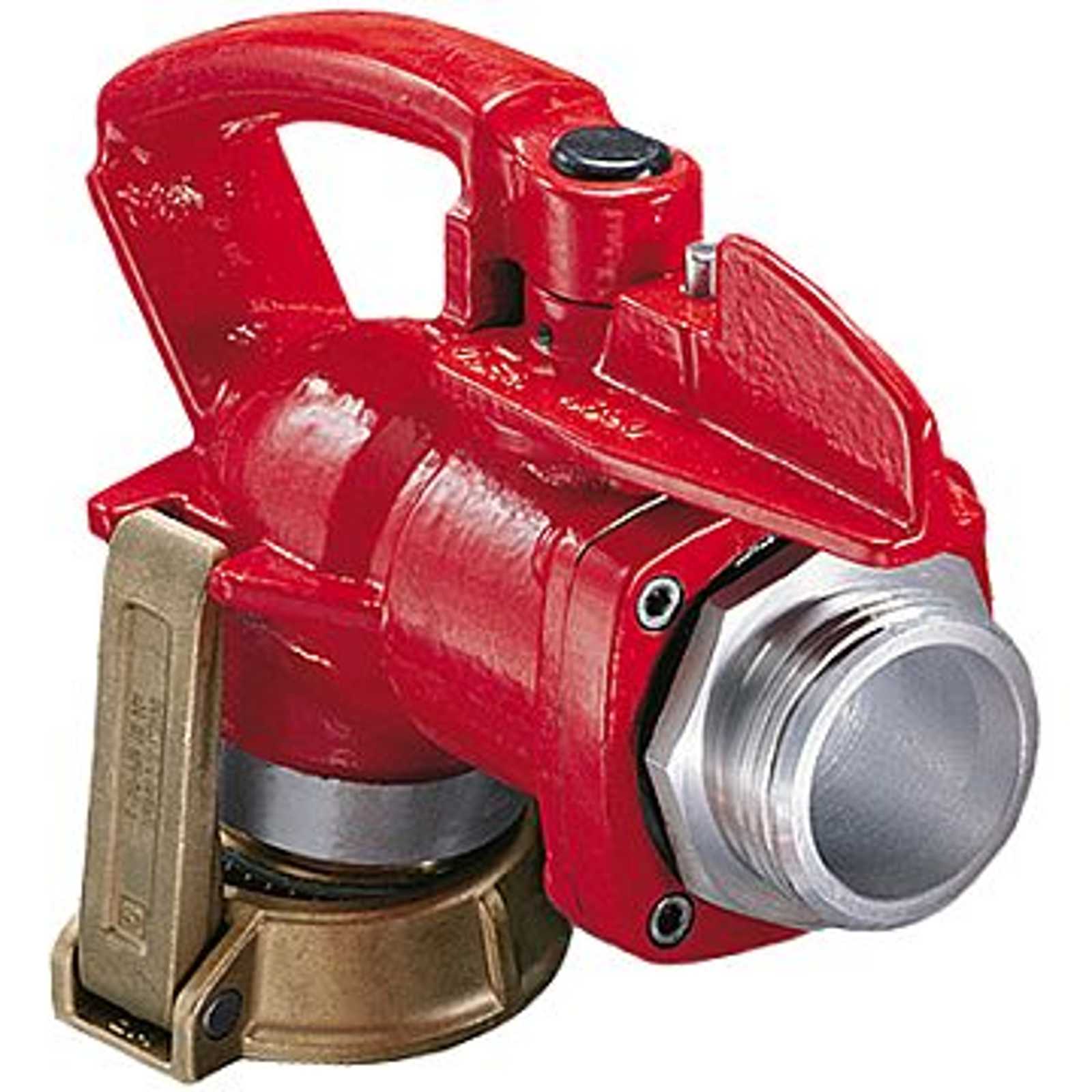

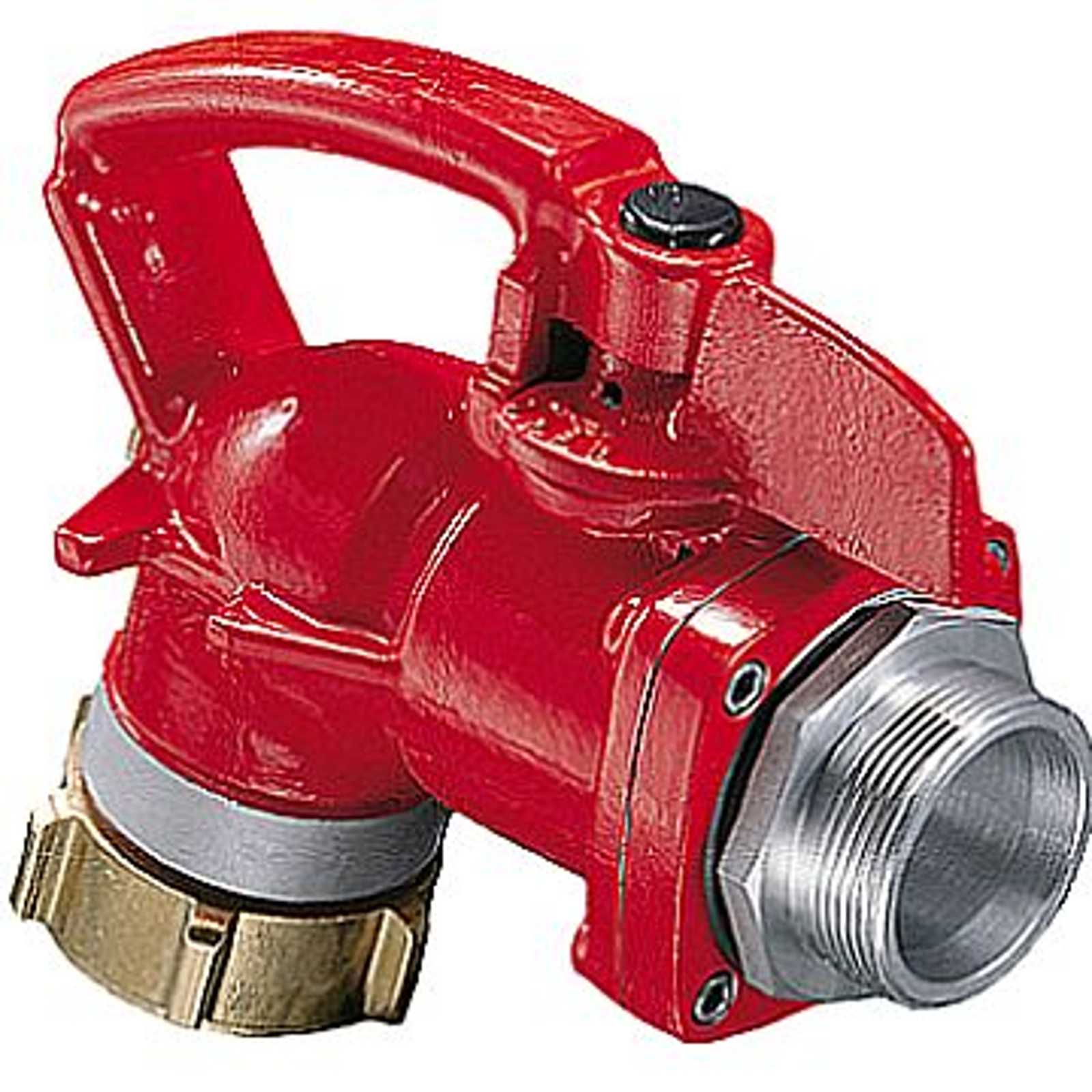

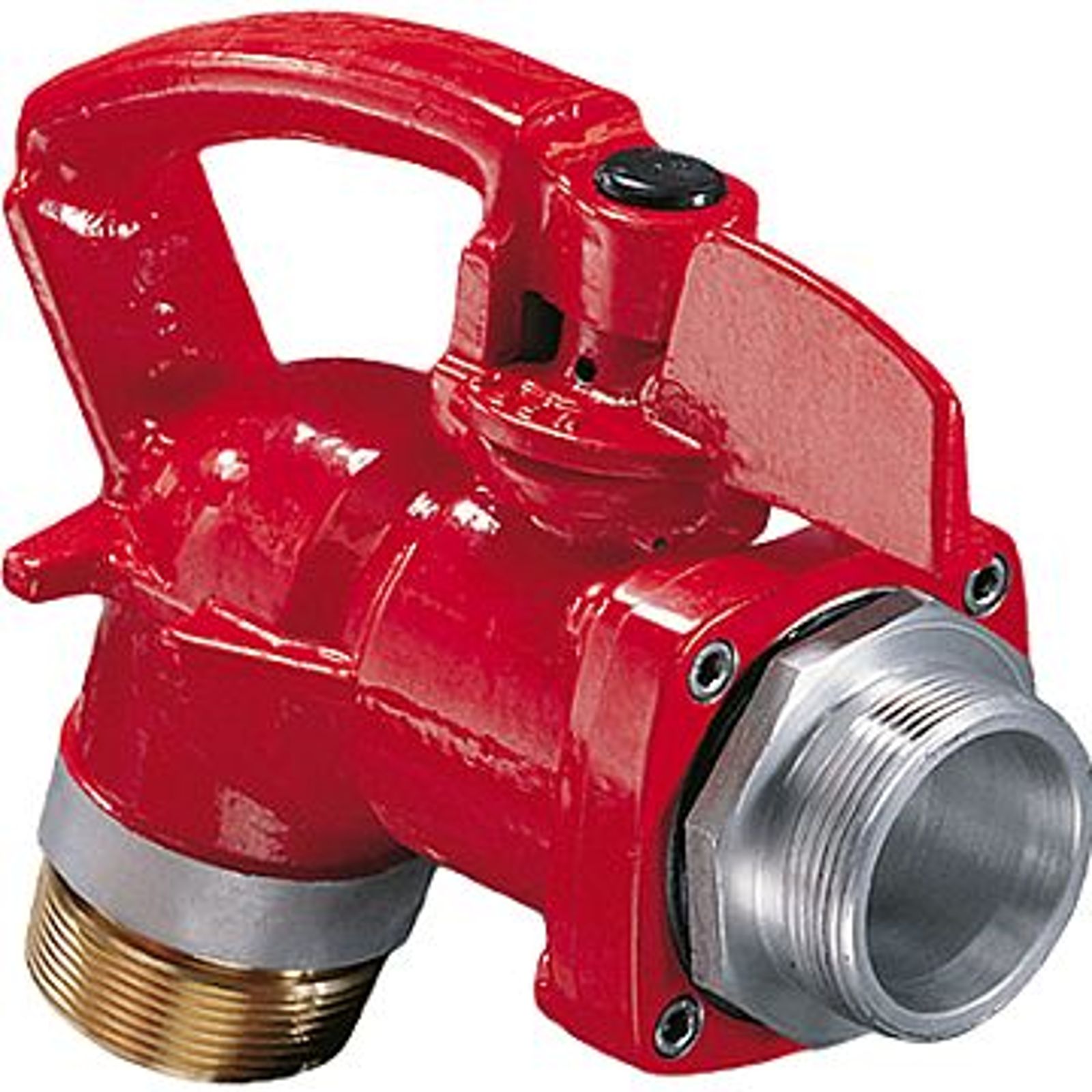

The TODO fueling nozzle is engineered to withstand the pressure generated during high‑volume fuel transfer. With a high flow rate and low pressure drop, loading and unloading operations remain efficient and controlled. A tight connection ensures minimal losses, while the thumb‑trigger valve allows operators to begin or stop fuel delivery with ease.
This design makes TODO fueling nozzles suitable not only for ground refuelling applications but increasingly for modern aircraft refueling operations where reliability and flow consistency are essential.
An aluminium alloy body, strong swivel and robust handle make TODO fueling nozzles extremely reliable even after long‑term use. They are designed to deliver high‑volume flow at full bore while ensuring a secure seal during the entire fueling process.
For aviation environments, these features also support aviation refuelling procedures where leak reduction and operational precision are critical.
TODO fueling nozzle is available in 2” sizes and are made from high-grade aluminium with brass attachments. Please see below for a full list of end connections and available O-ring grades.
Product | Max Working Pressure | Product Test Pressure | Working Temperature Range | Certification | Mounting | Sizes | Threads | Flanges | Materials | O-ring Grades | Options | Others |
TODO GAS | 25 bar (363 psi) | 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | Viton (FKM) 90 Shore | Pressure Equalisation Valve (PEV), colour coding, selectivity, caps and plugs, handle options. | |||||
TODO 45 | Up to 10 bar (580 psi) | Up to 15 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | Thread or flanged variants available | 2.5" (DN65) | Aluminium, Stainless Steel | Viton (FKM), FMVQ | |||||
NGX | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 2" (DN50), 3" (DN80), 4" (DN100) | Aluminium, Stainless Steel | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | ||||
TODO MATIC | Up to 25 bar (363 psi) | Up to 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 1" (DN25), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150) | Aluminium, Brass, Stainless Steel - others on request | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | Pressure Equalisation Valve (PEV), Colour coding, Selectivity, Caps and plugs, Locking mechanism, Magnetic switch, Rotational block, Handle options | |||
NGX MARINE | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16, PN25/40 (EN 1092-1), ANSI Class 150/300 (ANSI B16.5), Others on request | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||
PTC | Up to 25 bar (363 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | |||||||
FUEL NOZZLES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" Body | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium body, Brass attachments | Viton (FKM) | TODO Snap, W2" - 7 | |||||
BALL VALVES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | One-Way and Two-Way with manual or pneumatic operation | Blank flanged, TW, Weld end, Without connection | ||||
SWIVELS | -20°C to +80°C (-4°F to +176°F) | 0.75" to 4" | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16 (ANSI B16.5), Others on request | Aluminium, Brass, Stainless Steel, Others on request | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||||
TODO fuel nozzles are available in 2” sizes and are made from high-aluminium EN AW 6262 T6 and brass CW614N for the best possible performance.
This construction ensures optimal performance in demanding fueling environments, including ground vehicles, industrial fuelling and emerging aircraft refueling operations.
Max Working Pressure
Up to 10 bar (145 psi)
Working Temperature Range
-20°C to +80°C (-4°F to +176°F)

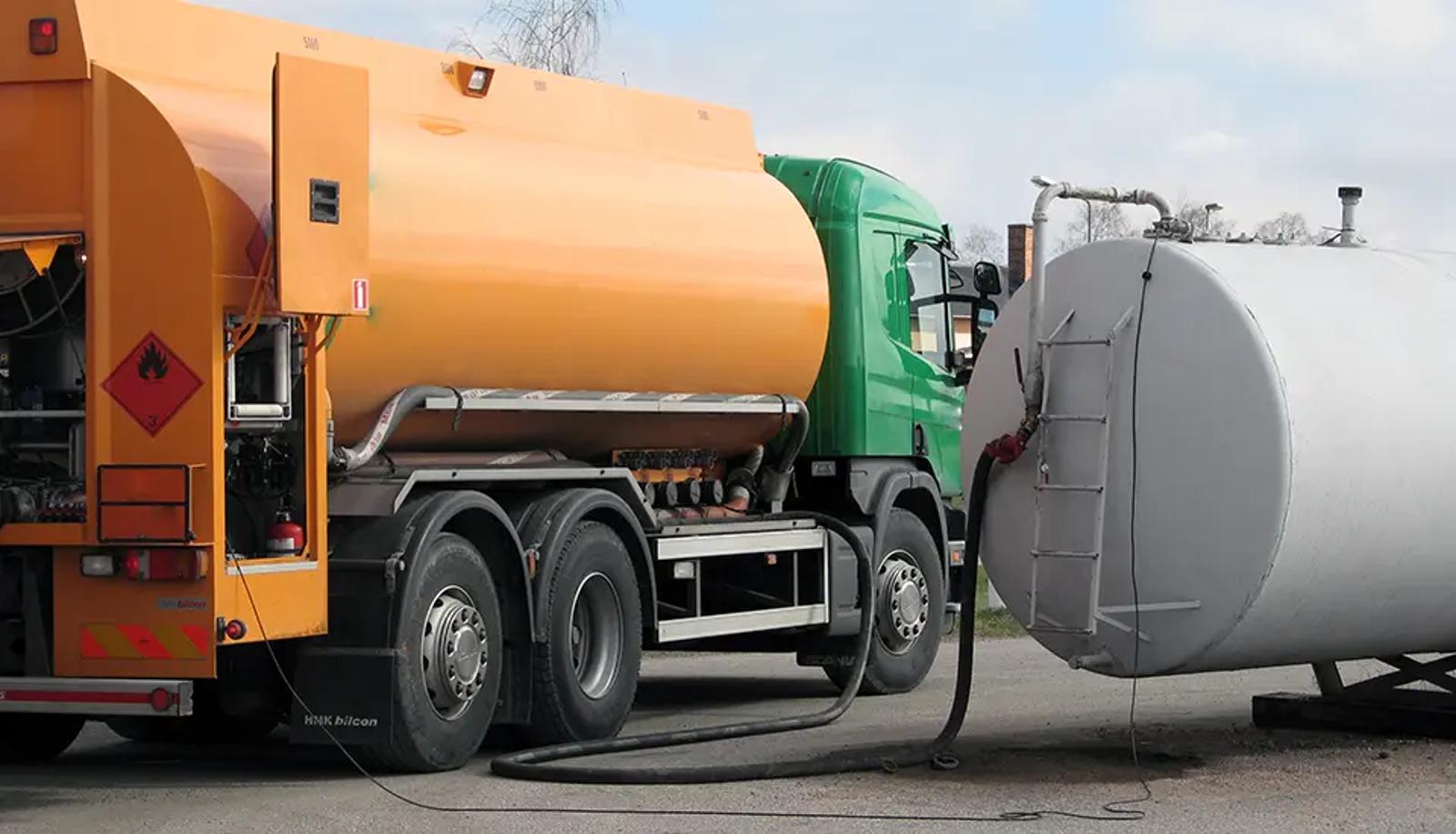

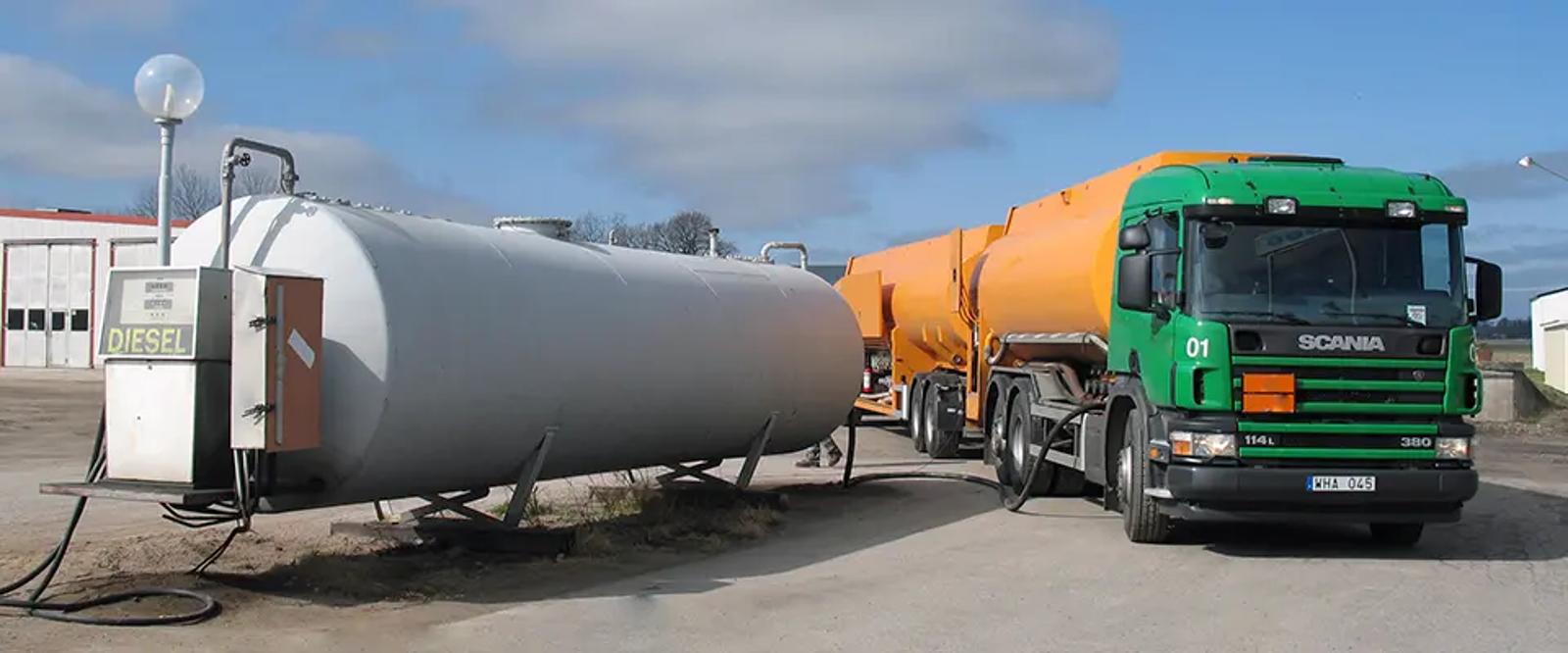

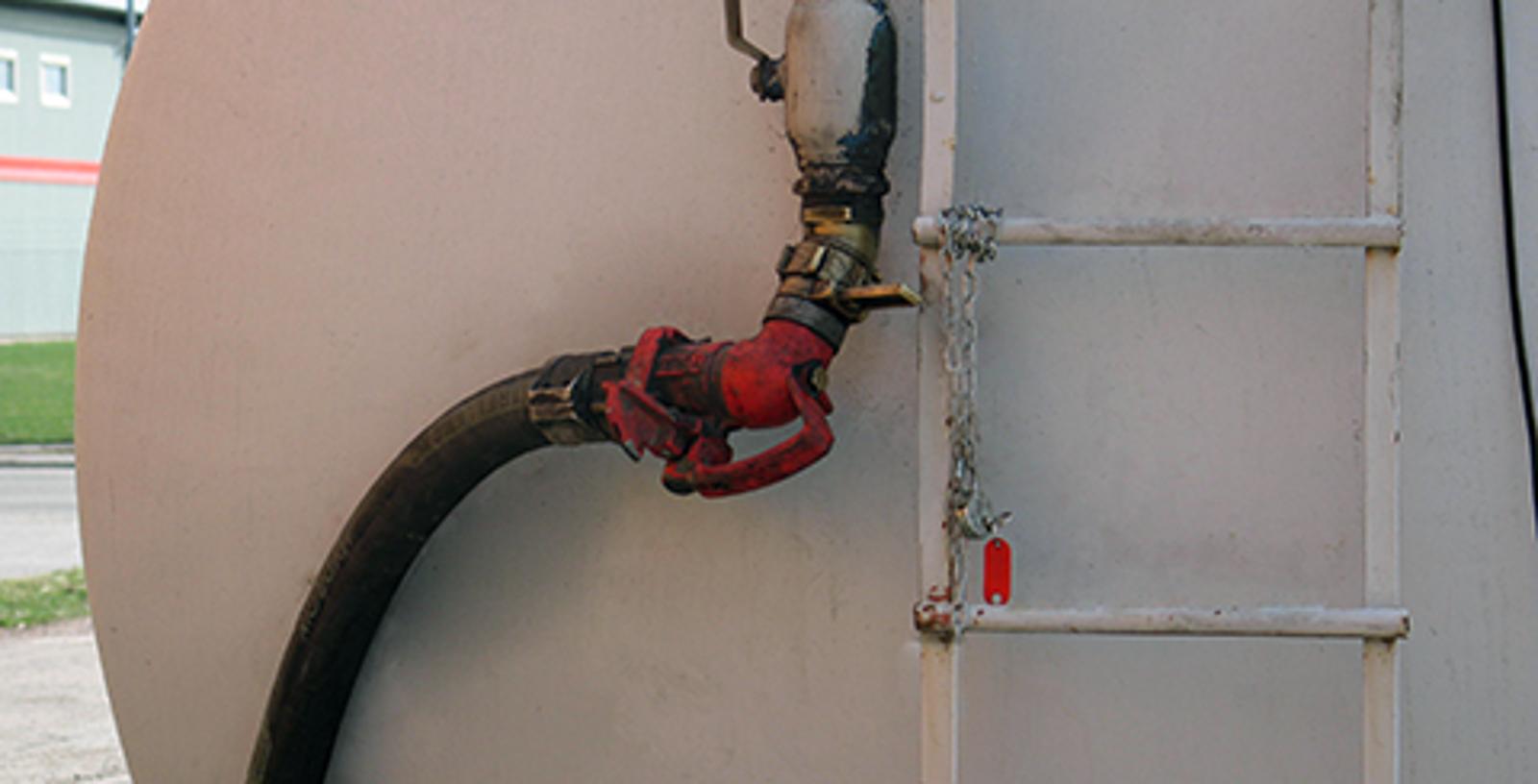

TODO fueling nozzles are widely used for bus refuelling, high‑volume ground fueling and general fuel transfer. As industries move toward more advanced coupling technologies, TODO fueling nozzles are increasingly adopted for:
They have also been used successfully in specialist applications such as paint transfer.
For clarification on suitability, please contact the TODO team.
