An aluminium alloy body, strong swivel and robust handle make TODO fueling nozzles highly reliable even after long-term use. They are designed to deliver high volumes of product at full bore with total security.
TODO Fueling Nozzle Fuel Delivery Products
The TODO fueling nozzle is designed to withstand pressure generated during high-volume transfer of a medium. Its high flow rate and low pressure drop means loading and unloading is efficient, while a tight seal and connection ensures minimal losses. Users simply open the valve with the thumb trigger to begin fuel delivery and reverse to stop.
TODO fueling nozzles are available in 2” sizes and are made from high-grade aluminium with brass attachments. Please see below for a full list of end connections and available O-ring grades.
| Product | Max Working Pressure | Product Test Pressure | Working Temperature Range | Certification | Mounting | Sizes | Threads | Flanges | Materials | O-ring Grades | Options | Others |
| TODO GAS | 25 bar (363 psi) | 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | Viton (FKM) 90 Shore | Pressure Equalisation Valve (PEV), colour coding, selectivity, caps and plugs, handle options. | |||||
| TODO 45 | Up to 10 bar (580 psi) | Up to 15 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | Thread or flanged variants available | 2.5" (DN65) | Aluminium, Stainless Steel | Viton (FKM), FMVQ | |||||
| NGX | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 2" (DN50), 3" (DN80), 4" (DN100) | Aluminium, Stainless Steel | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | ||||
| TODO MATIC | Up to 25 bar (363 psi) | Up to 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 1" (DN25), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150) | Aluminium, Brass, Stainless Steel - others on request | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | Pressure Equalisation Valve (PEV), Colour coding, Selectivity, Caps and plugs, Locking mechanism, Magnetic switch, Rotational block, Handle options | |||
| NGX MARINE | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16, PN25/40 (EN 1092-1), ANSI Class 150/300 (ANSI B16.5), Others on request | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||
| PTC | Up to 25 bar (363 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | |||||||
| FUEL NOZZLES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" Body | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium body, Brass attachments | Viton (FKM) | TODO Snap, W2" - 7 | |||||
| BALL VALVES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | One-Way and Two-Way with manual or pneumatic operation | Blank flanged, TW, Weld end, Without connection | ||||
| SWIVELS | -20°C to +80°C (-4°F to +176°F) | 0.75" to 4" | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16 (ANSI B16.5), Others on request | Aluminium, Brass, Stainless Steel, Others on request | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||||

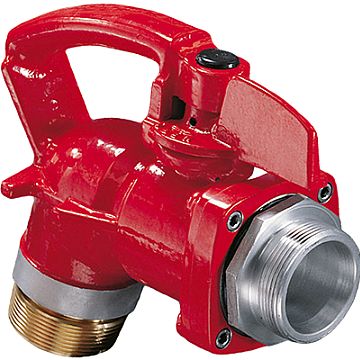

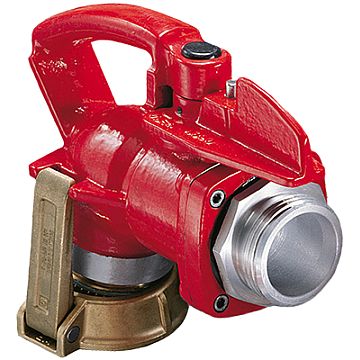

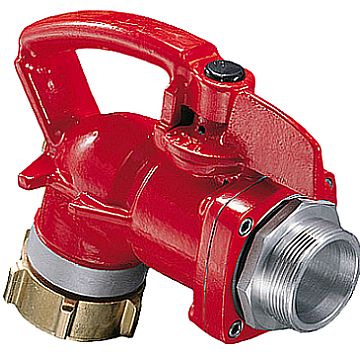

TODO fuel nozzles are available in 2” sizes and are made from high-aluminium EN AW 6262 T6 and brass CW614N for the best possible performance.
Max Working Pressure
Up to 10 bar (145 psi)
Working Temperature Range
-20°C to +80°C (-4°F to +176°F)

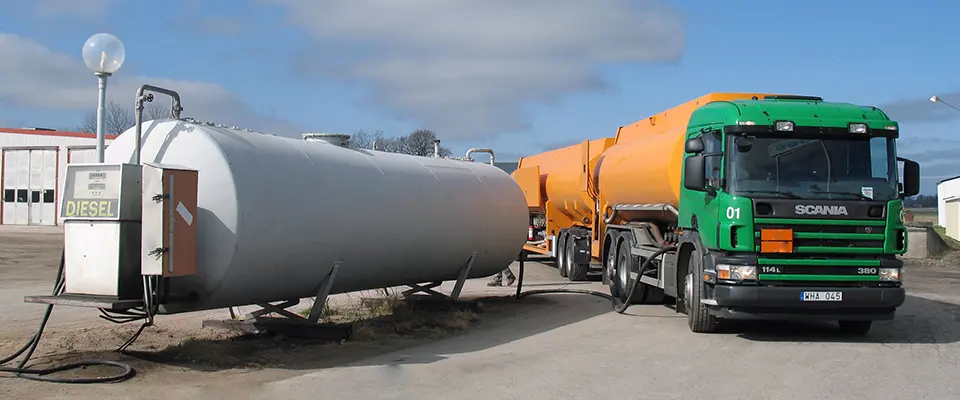

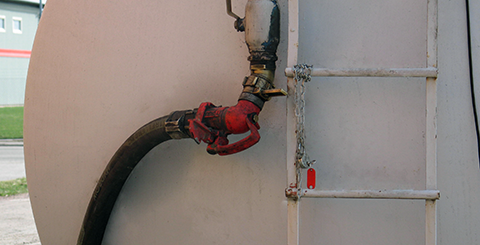

TODO fueling nozzles are often used for bus refuelling but are seeing wider use as customers switch to more advanced couplings. They have also been used to deliver paint. Please contact TODO if you are unsure about the suitability of this product for a certain application.
