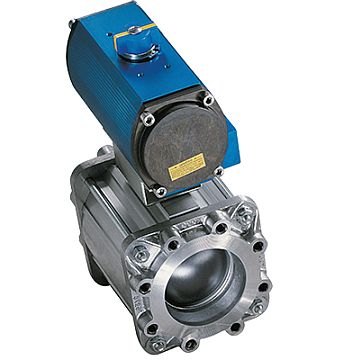

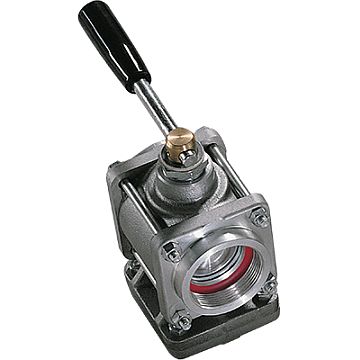

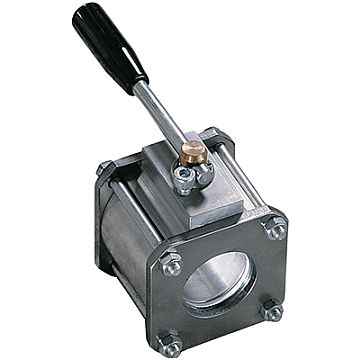

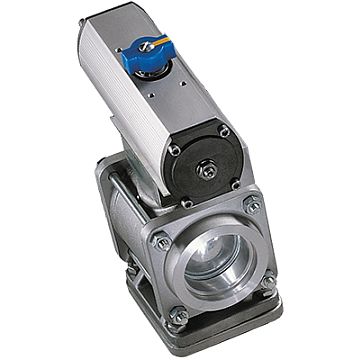

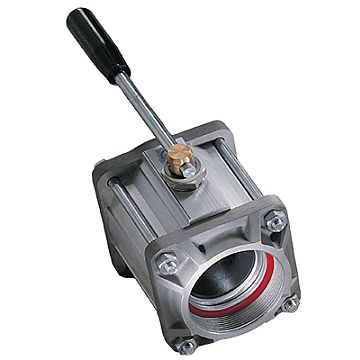

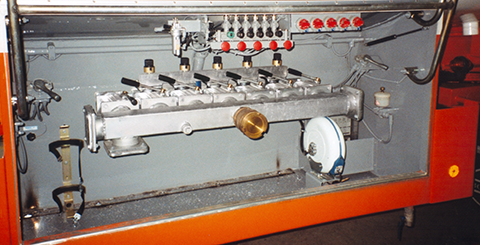

TODO ball valves are available in 2-4” sizes. Flow can be either one or two way, with manual or pneumatic operation also available. One-way is often used on road tankers and other plant applications where flow is only needed in a single direction, while two-way is ideal for use as a compartment or tank switching valve. Pneumatic valves have both spring return and double acting options. Please see below for a full list of end connections and O-ring grades available.
TODO Ball Valves Road & Tanker Products

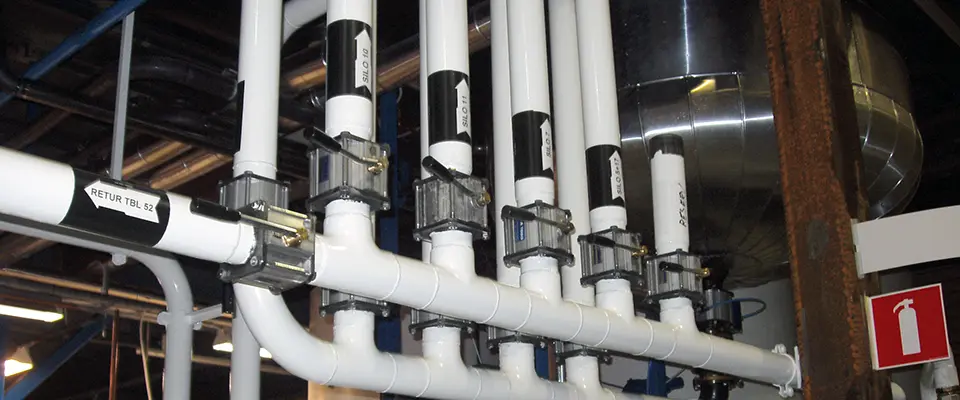

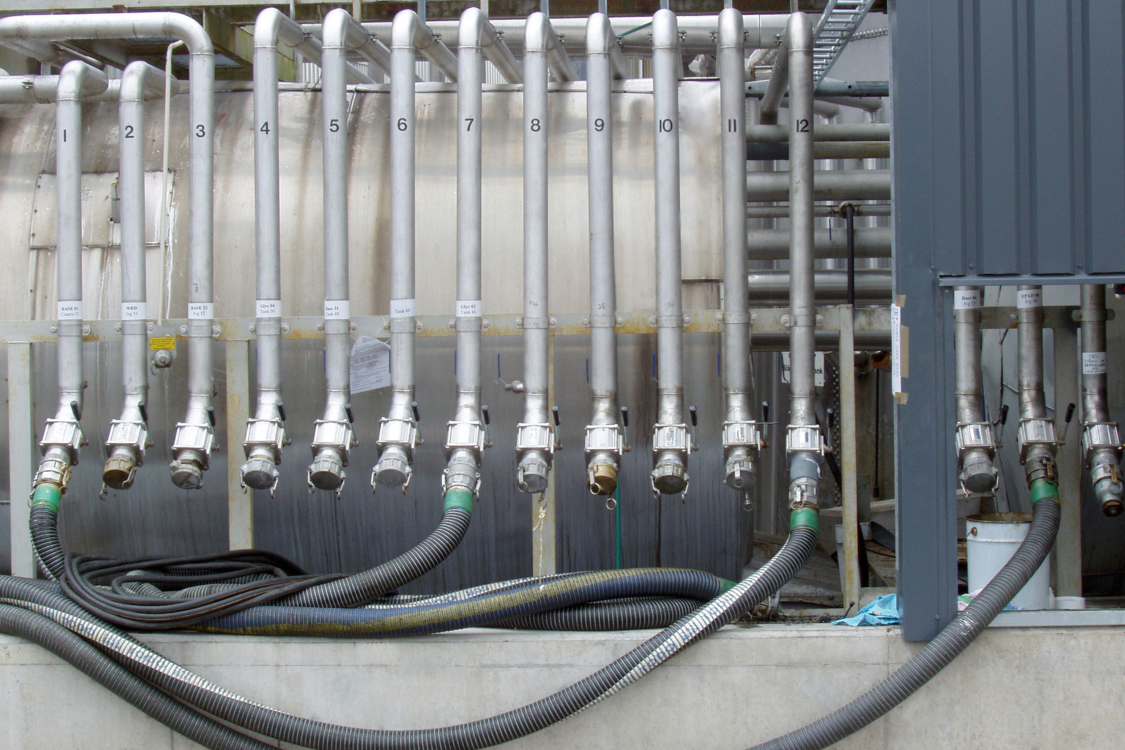

TODO ball valves are ideal for applications that involve regular compartment switching and can also be used for fixed plant and mobile refuelling. An innovative sandwich design ensures quick valve changeovers and minimal leakage, while robust construction and high-quality materials guarantee reliability even after repeat use.
This product features a robust design and uses high-quality materials for a long life in operation.
| Product | Max Working Pressure | Product Test Pressure | Working Temperature Range | Certification | Mounting | Sizes | Threads | Flanges | Materials | O-ring Grades | Options | Others |
| TODO GAS | 25 bar (363 psi) | 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | Viton (FKM) 90 Shore | Pressure Equalisation Valve (PEV), colour coding, selectivity, caps and plugs, handle options. | |||||
| TODO 45 | Up to 10 bar (580 psi) | Up to 15 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | Thread or flanged variants available | 2.5" (DN65) | Aluminium, Stainless Steel | Viton (FKM), FMVQ | |||||
| NGX | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 2" (DN50), 3" (DN80), 4" (DN100) | Aluminium, Stainless Steel | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | ||||
| TODO MATIC | Up to 25 bar (363 psi) | Up to 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 1" (DN25), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150) | Aluminium, Brass, Stainless Steel - others on request | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | Pressure Equalisation Valve (PEV), Colour coding, Selectivity, Caps and plugs, Locking mechanism, Magnetic switch, Rotational block, Handle options | |||
| NGX MARINE | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16, PN25/40 (EN 1092-1), ANSI Class 150/300 (ANSI B16.5), Others on request | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||
| PTC | Up to 25 bar (363 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | |||||||
| FUEL NOZZLES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" Body | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium body, Brass attachments | Viton (FKM) | TODO Snap, W2" - 7 | |||||
| BALL VALVES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | One-Way and Two-Way with manual or pneumatic operation | Blank flanged, TW, Weld end, Without connection | ||||
| SWIVELS | -20°C to +80°C (-4°F to +176°F) | 0.75" to 4" | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16 (ANSI B16.5), Others on request | Aluminium, Brass, Stainless Steel, Others on request | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||||
