Developed in close collaboration with major European chemical companies, TODO Safety Pressure Tight Caps guarantee containment and operational safety.
They are equipped with a red O-ring to alert operators to the existence of pressure behind the cap. In turn, this gives warning to other potential upstream valve failures. No other existing closure technology comes close.
TODO’s pressure Caps are designed to protect operators and profit margins. They will maintain pressure in the event of a leakage but will also quickly release if manually removed. This eliminates the risk of product leakage in the event of a line fault, assuring the safety of colleagues.

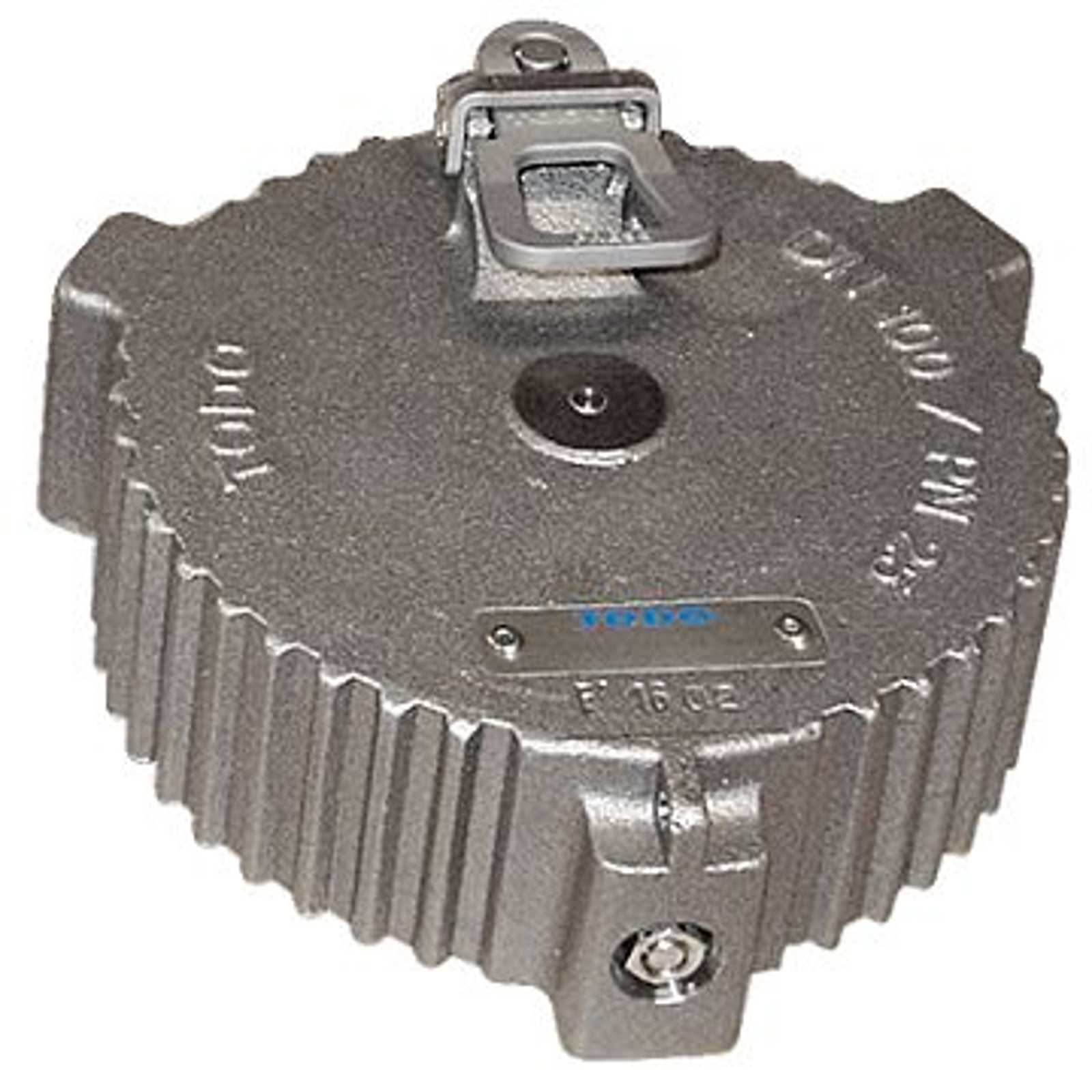

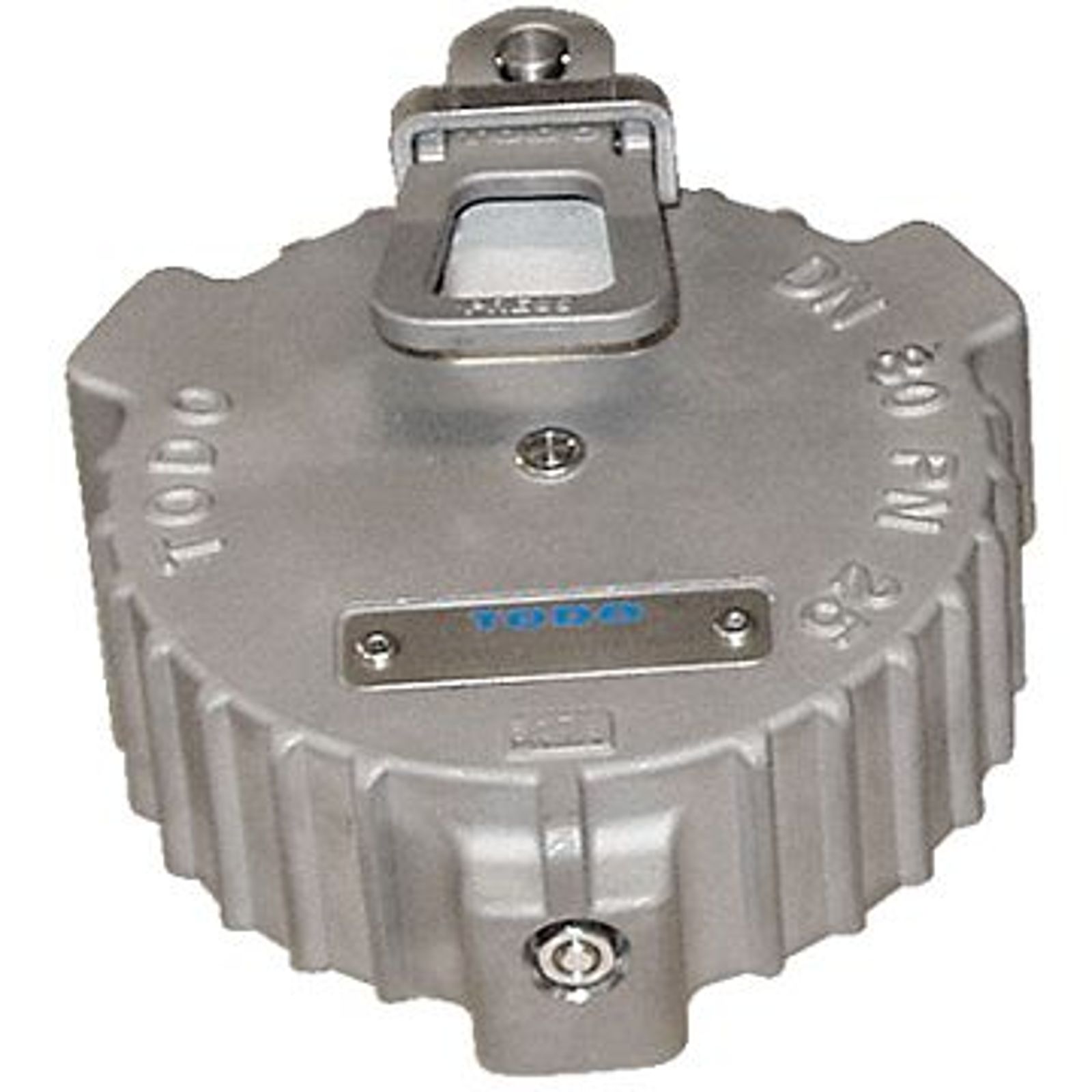

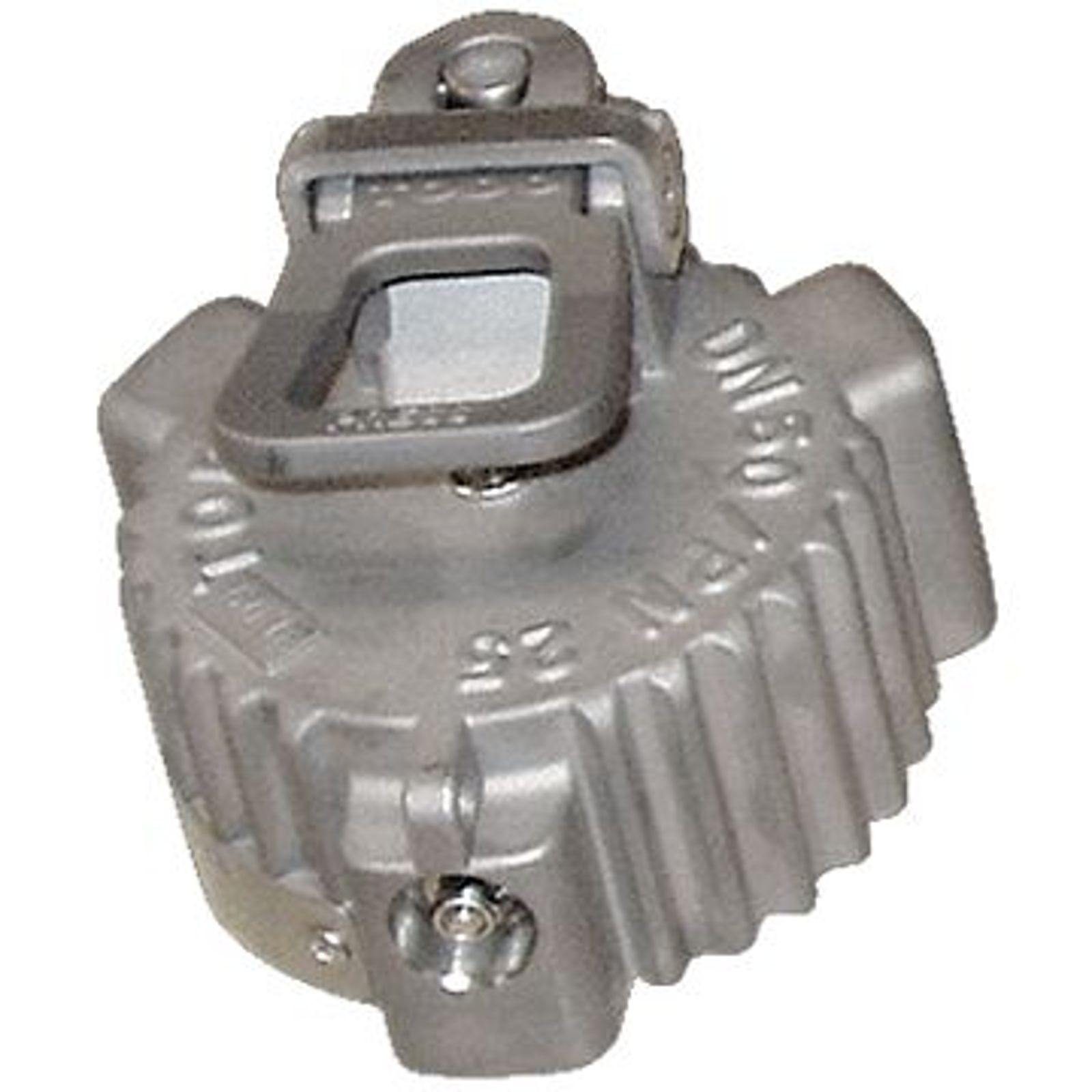

Safety Pressure Tight Caps are built with high-grade stainless steel and come in 2-4” sizes. The product can be fitted with an almost unlimited choice of O-ring grades to suit a wide range of different applications.
Product | Max Working Pressure | Product Test Pressure | Working Temperature Range | Certification | Mounting | Sizes | Threads | Flanges | Materials | O-ring Grades | Options | Others |
TODO GAS | 25 bar (363 psi) | 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | Viton (FKM) 90 Shore | Pressure Equalisation Valve (PEV), colour coding, selectivity, caps and plugs, handle options. | |||||
TODO 45 | Up to 10 bar (580 psi) | Up to 15 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | Thread or flanged variants available | 2.5" (DN65) | Aluminium, Stainless Steel | Viton (FKM), FMVQ | |||||
NGX | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 2" (DN50), 3" (DN80), 4" (DN100) | Aluminium, Stainless Steel | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | ||||
TODO MATIC | Up to 25 bar (363 psi) | Up to 37.5 bar (544 psi) | -20°C to +80°C (-4°F to +176°F) standard; -45°C to +150°C (-49°F to +302°F) options | 2014/68/EU - Pressure Equipment Directive (PED) | Thread or flanged variants available | 1" (DN25), 2" (DN50), 2.5" (DN65), 3" (DN80), 4" (DN100), 6" (DN150) | Aluminium, Brass, Stainless Steel - others on request | Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others | Pressure Equalisation Valve (PEV), Colour coding, Selectivity, Caps and plugs, Locking mechanism, Magnetic switch, Rotational block, Handle options | |||
NGX MARINE | Up to 40 bar (580 psi) | Up to 60 bar (870 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16, PN25/40 (EN 1092-1), ANSI Class 150/300 (ANSI B16.5), Others on request | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||
PTC | Up to 25 bar (363 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | Stainless steel only | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | |||||||
FUEL NOZZLES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" Body | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium body, Brass attachments | Viton (FKM) | TODO Snap, W2" - 7 | |||||
BALL VALVES | Up to 10 bar (145 psi) | -20°C to +80°C (-4°F to +176°F) | 2" (DN50), 3" (DN80), 4" (DN100) | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | Aluminium | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | One-Way and Two-Way with manual or pneumatic operation | Blank flanged, TW, Weld end, Without connection | ||||
SWIVELS | -20°C to +80°C (-4°F to +176°F) | 0.75" to 4" | BSP (ISO 228), NPT (ANSI B1.20.1), Others on request | PN10/16 (ANSI B16.5), Others on request | Aluminium, Brass, Stainless Steel, Others on request | Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM) | ||||||
All pressure caps are made using 316L grade stainless steel for exceptional durability even when handling aggressive chemicals. They have a working pressure of 25 bar (363 psi) and working temperature range of -20°C to +80°C (-4°F to +176°F).
Max. Working Pressure Working Temperature Range
Up to 25 bar (363 psi) -20°C to +80°C (-4°F to +176°F)

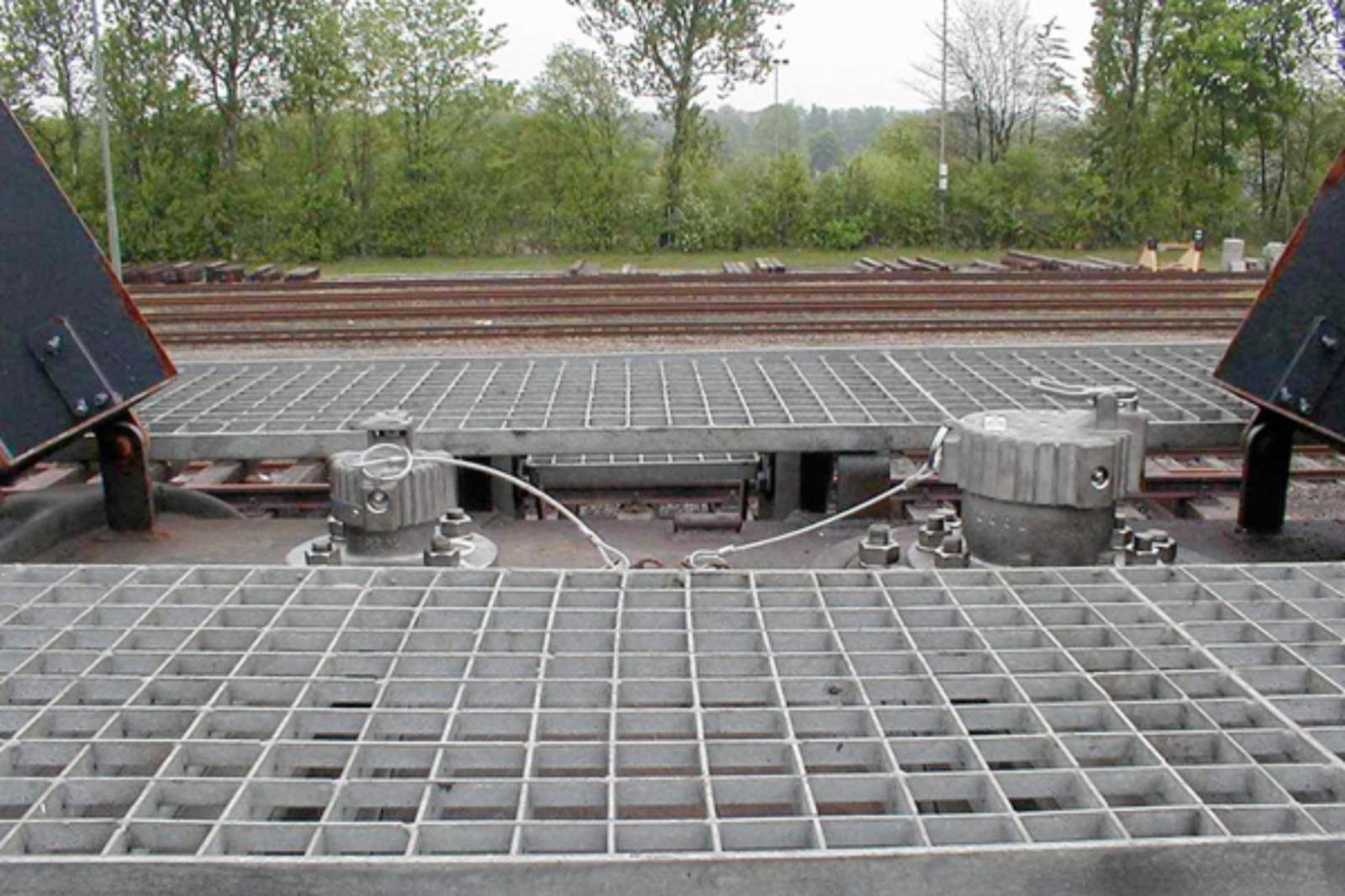

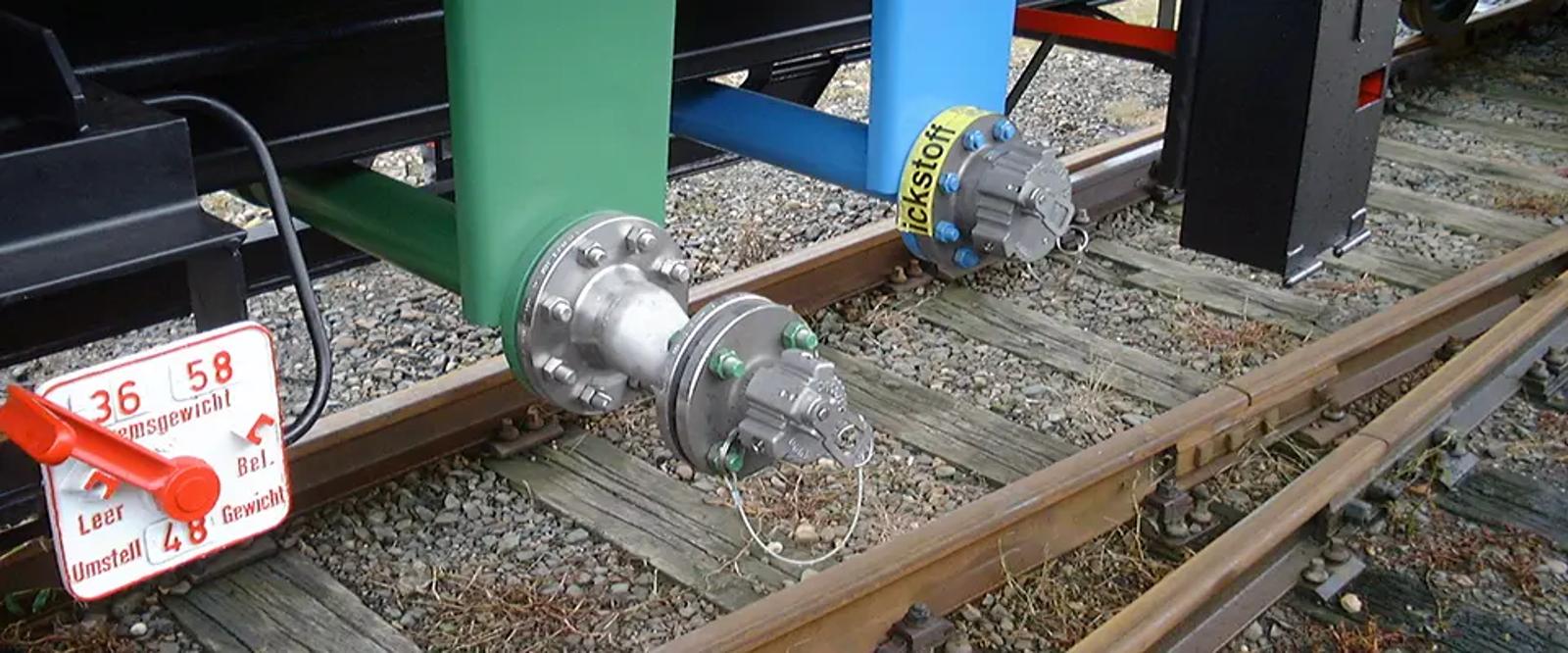

TODO’s Safety Pressure Tight Caps are recognised for their ability to assure operator safety and protect stored product. They are used by many major companies in the chemical, oil and gas and LPG sectors.
TODO works with many major chemical and petrochemical customers. Our chemical valves are prized for their reliability under tough conditions.
Our railway couplings are certified by TÜV for use within the German rail car industry and most manufacturers and operators regard TODO as their supplier of choice.
TODO is recognised as a leading provider of gas couplings and accessories for the liquefied petroleum gas (LPG) sector.
